GITALLER Firmware Update Guide

Download Firmware

Download Firmware

tip

Please fully extract before use. Do not run directly from the compressed package.

Firmware Update Guide

1. Extract the firmware package

   Extract the downloaded firmware compressed package to a local folder.

2. Make sure USB is disconnected

   Confirm your GITALLER USB cable is unplugged from PC.

3. Enter firmware update mode

   Push START + SELECT button at same time, do not loosen your hand. Plug GITALLER USB cable to PC with your other hand. Then loosen the START + SELECT button.





4. Open the firmware update program

   Open GITALLER_firmware_APP.exe.



5. Load firmware file

   Click LoadFile button. Find your download folder, select GITALLER_firmware_V1.0_20200926.bin.





6. Start update

   Click Start button to begin updating. Wait for the progress bar to complete.





7. Update complete

   After success, replug your GITALLER USB cable (Very important).



   warning

   If not successful, please retry again from Step 3.

After Updating, What's New?

WAILING BUTTON Mode

The mode is default when you update the firmware, no need to switch.

Push B1+B2+B3+B4+B5+SELECT at same time for 2 seconds, the gyroscope XYZ stops outputting, wailing_up and wailing_down output as two single button signals.

WAILING XYZ Mode

The mode is for advanced players. Beginner players please don't use it.

Push B1+B2+B3+B4+B5+START at same time for 2 seconds, wailing_up and wailing_down buttons stop to output, the gyroscope XYZ outputs normally.

What Problem Does It Solve?

1. At GITADORA trial 1.0, START button is start function, SELECT button is the help function
2. When you setup DTXmania, please use WAILING BUTTON mode, wailing_up and wailing_down need to be mapped on DTXmania wailing config
3. When you use S tools or B tools, if map XYZ axis, please switch WAILING XYZ mode; if map wailing_up and wailing_down buttons, please switch WAILING BUTTON mode

Key Config at GITADORA trial

At GITADORA trial, first button is showed as 0, wailing_up is showed as 10, wailing_down is showed as 11.

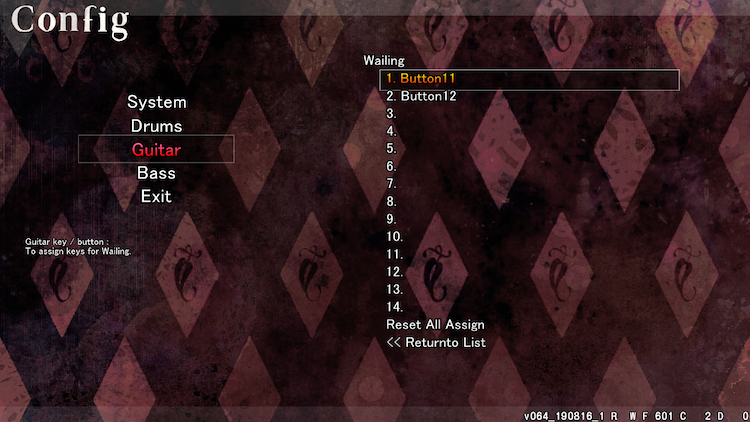

Wailing Config at DTXmania

At DTXmania, first button is showed as 1, wailing_up is showed as 11, wailing_down is showed as 12.

Package Manager Install Example

npm

npm install gitaller-tools

yarn

yarn add gitaller-tools

pnpm

pnpm add gitaller-tools

deno

deno add npm:gitaller-tools

tip

If you can't resolve the issue, please feel free to contact us by email. We will provide more help for you.
