How to adjust the PHOENIXWAN LMT turntable damping

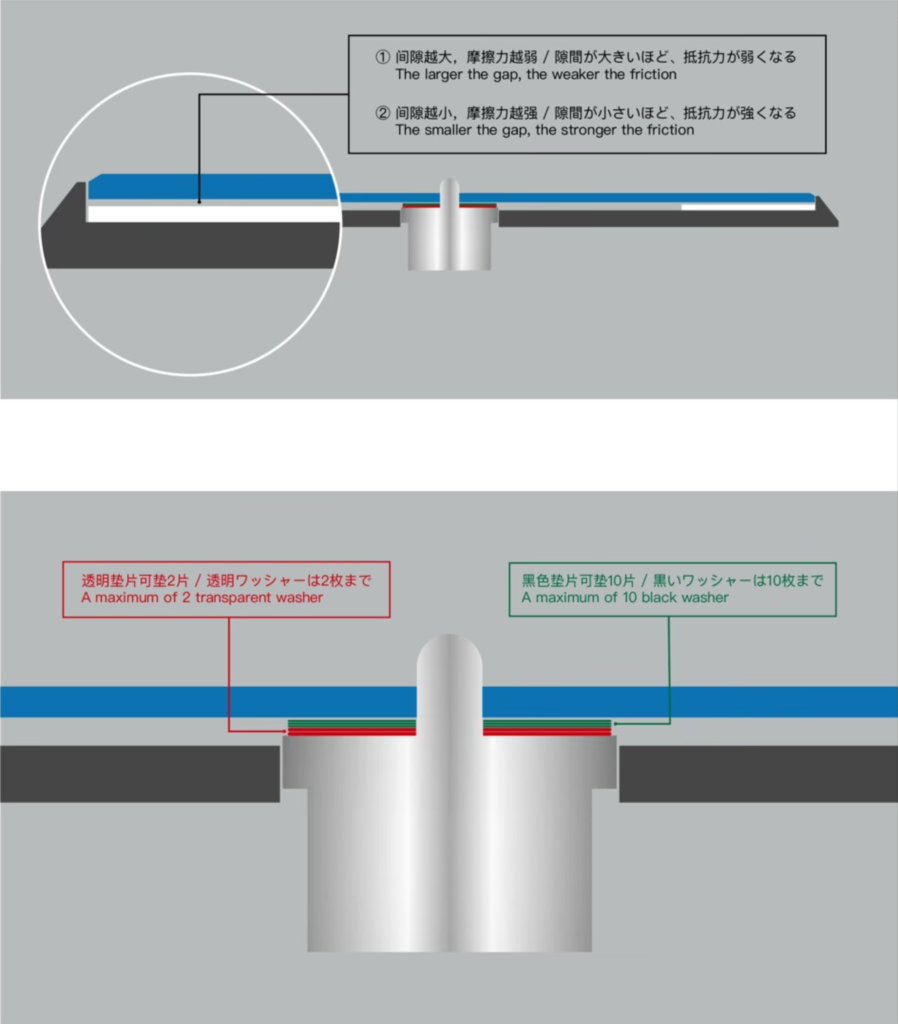

Overview

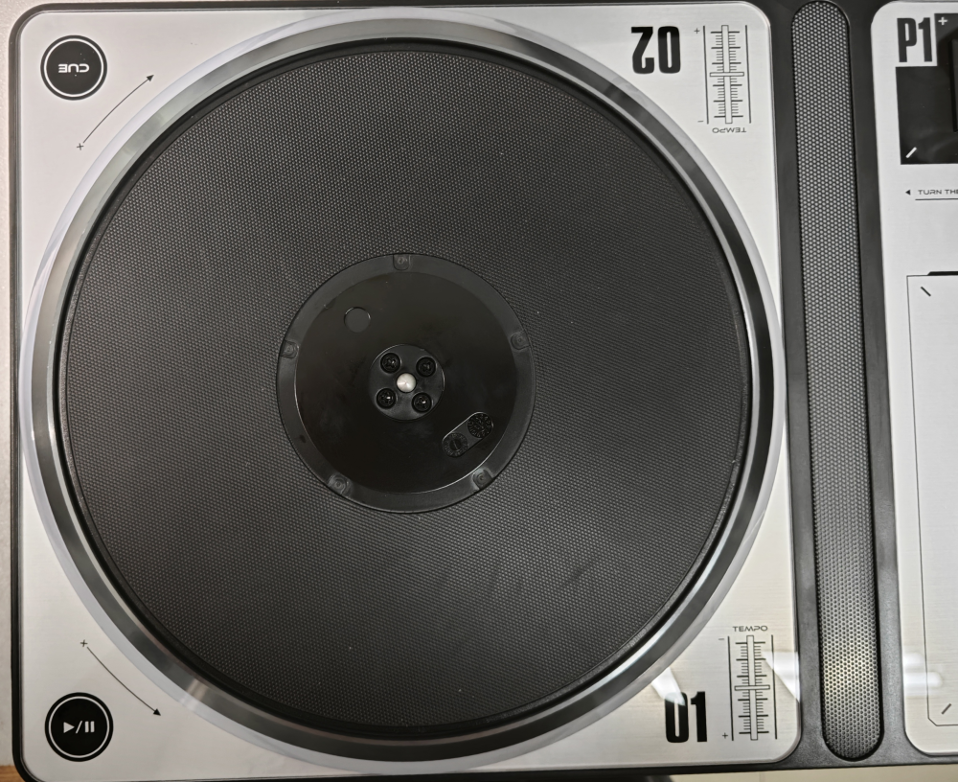

  1. Remove the magnetic turntable sticker

    Remove the magnetic turntable sticker.

    Step 1

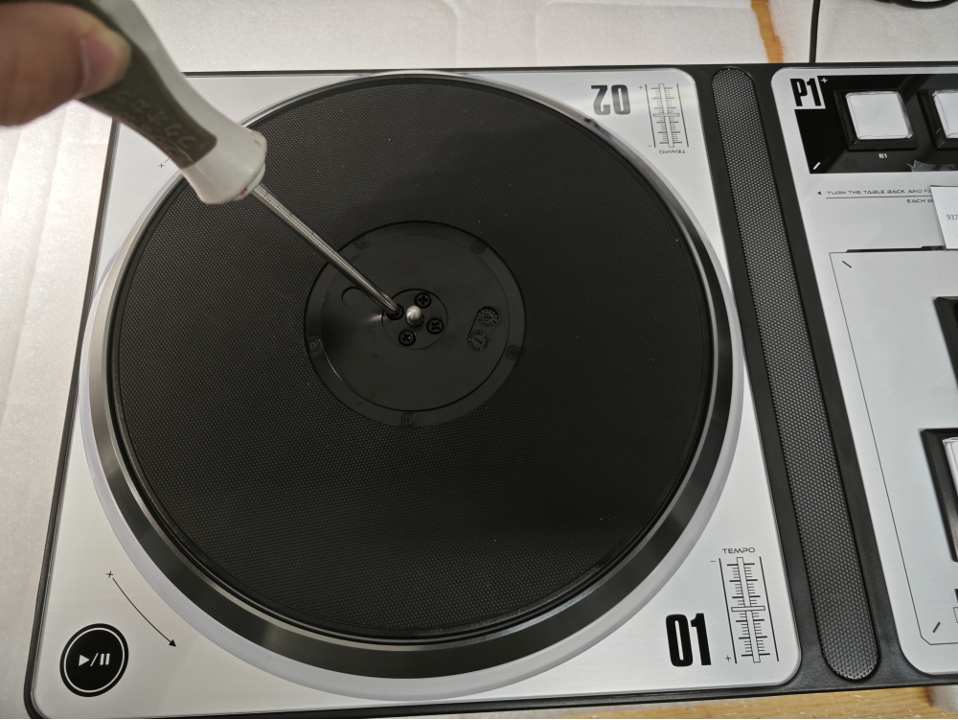

  2. Remove the screws holding the turntable in place

    Use a Phillips screwdriver to remove the screws holding the turntable in place.

    Step 2

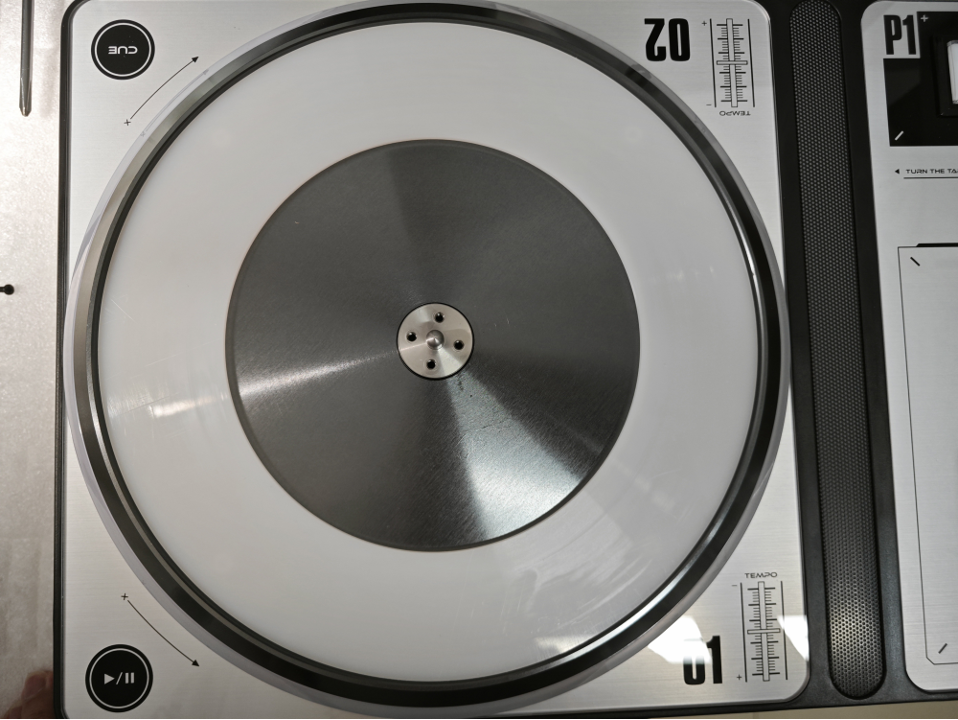

  3. Remove the turntable

    Remove the turntable.

    Step 3

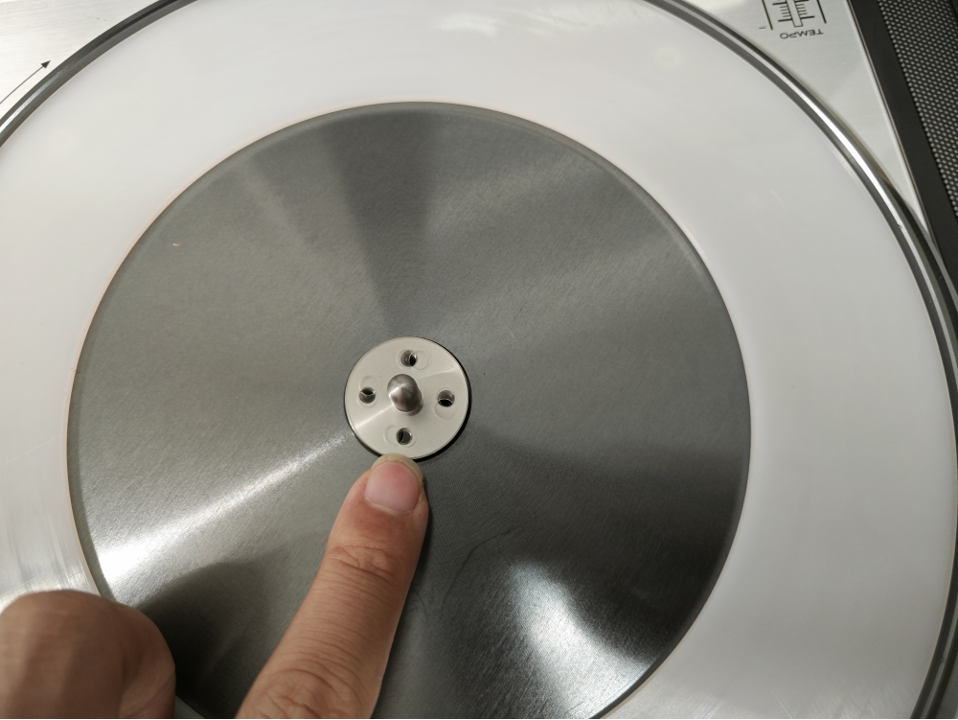

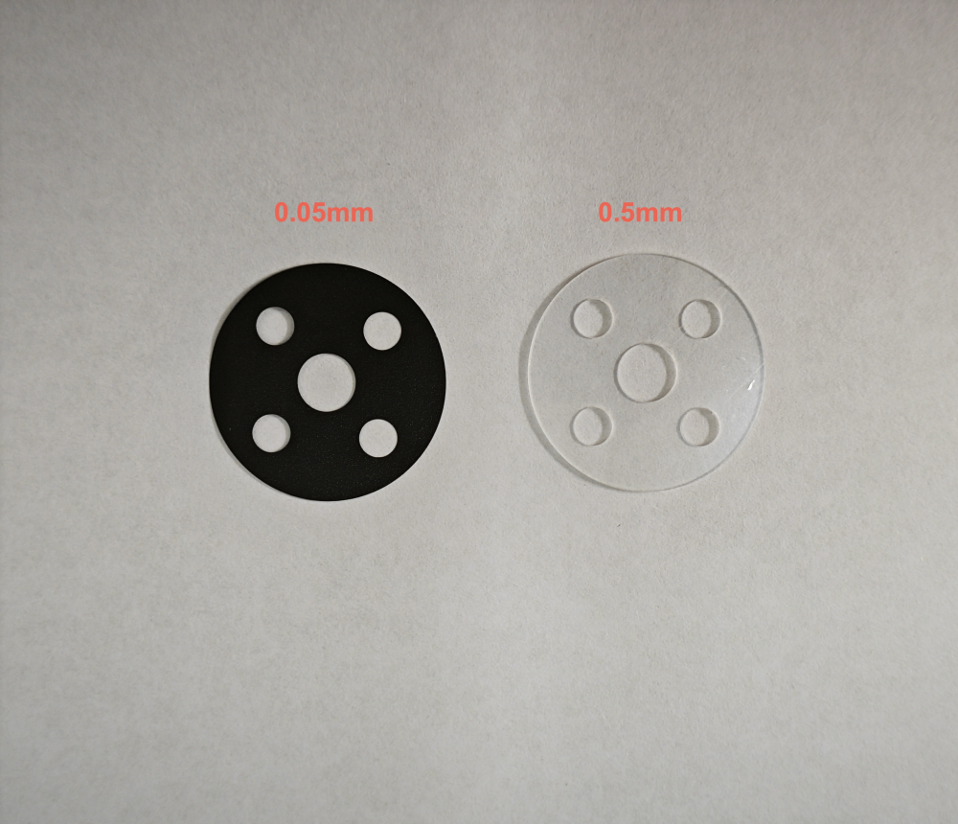

  4. Adjust the number of washers

    Adjust the number of washers. (Black×1=0.05mm, transparent×1=0.5mm)

    Step 4a

    Step 4b

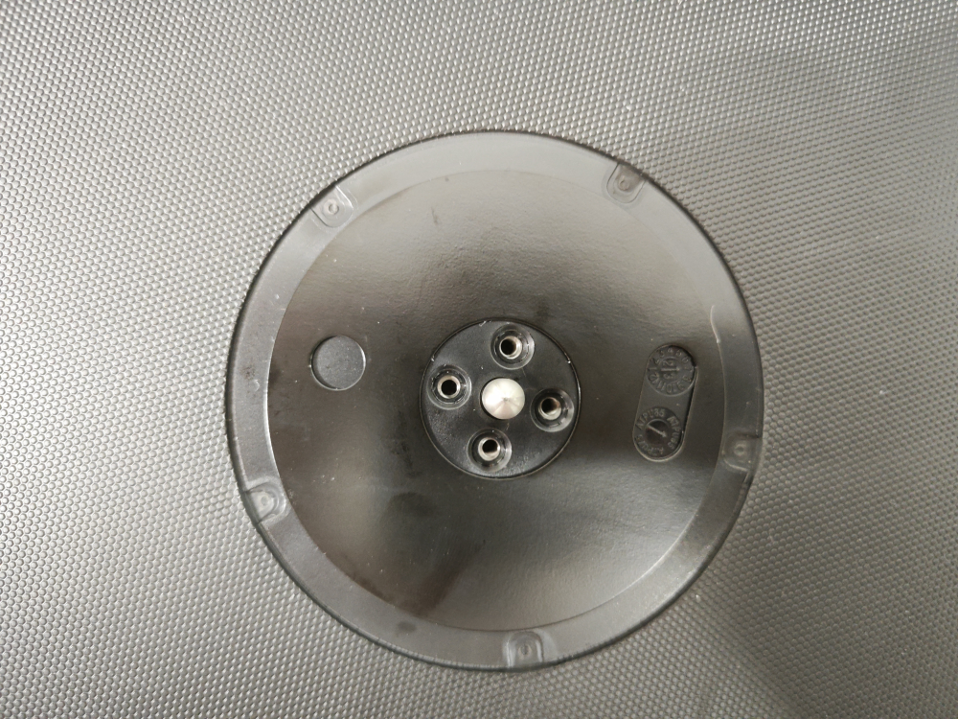

  5. Place the turntable over the spacer and align the screw holes

    Place the turntable over the spacer and align the screw holes.

    Step 5

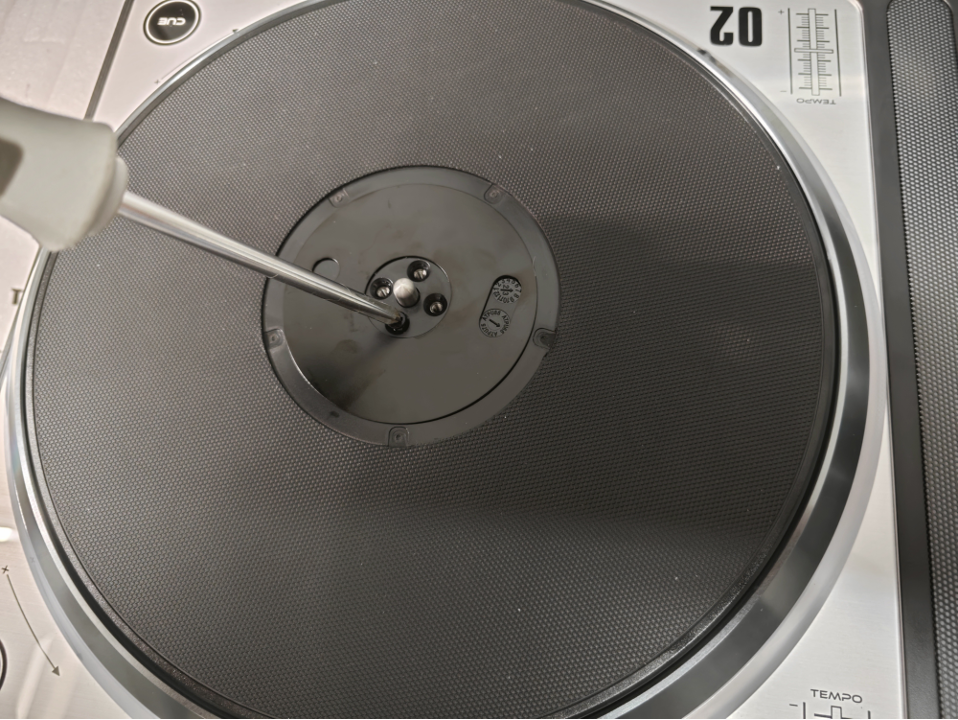

  6. Tighten the screws to secure the turntable

    Use a screwdriver to tighten the screws to secure the turntable.

    Step 6

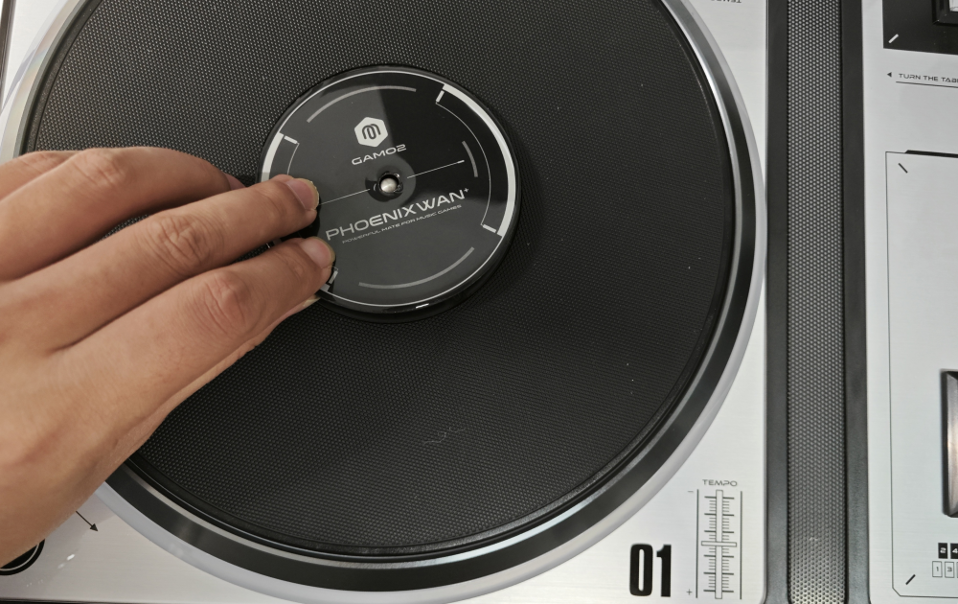

  7. Cover with magnetic turntable sticker

    Cover with magnetic turntable sticker.

    Step 7
